Fanuc 24 pin EE print
Fanuc EE 24 pin print
EE Cables 24 PIN
Industrial Robot Cables

Robot cables and connectors.
All the cables listed here can
made be in any length.
Contact us for inquires.
industrialrobotcables@gmail.com

credit cards
Pay with PayPal
or pay securely with a credit card.

Fanuc 24 pin EE cable and connector.
Standard grade cable for job box hookup.
EE Cable standard

STANDARD CABLE
STRAIGHT
SELECT LENGTH

STANDARD CABLE
90° CONNECTOR
SELECT LENGTH


.

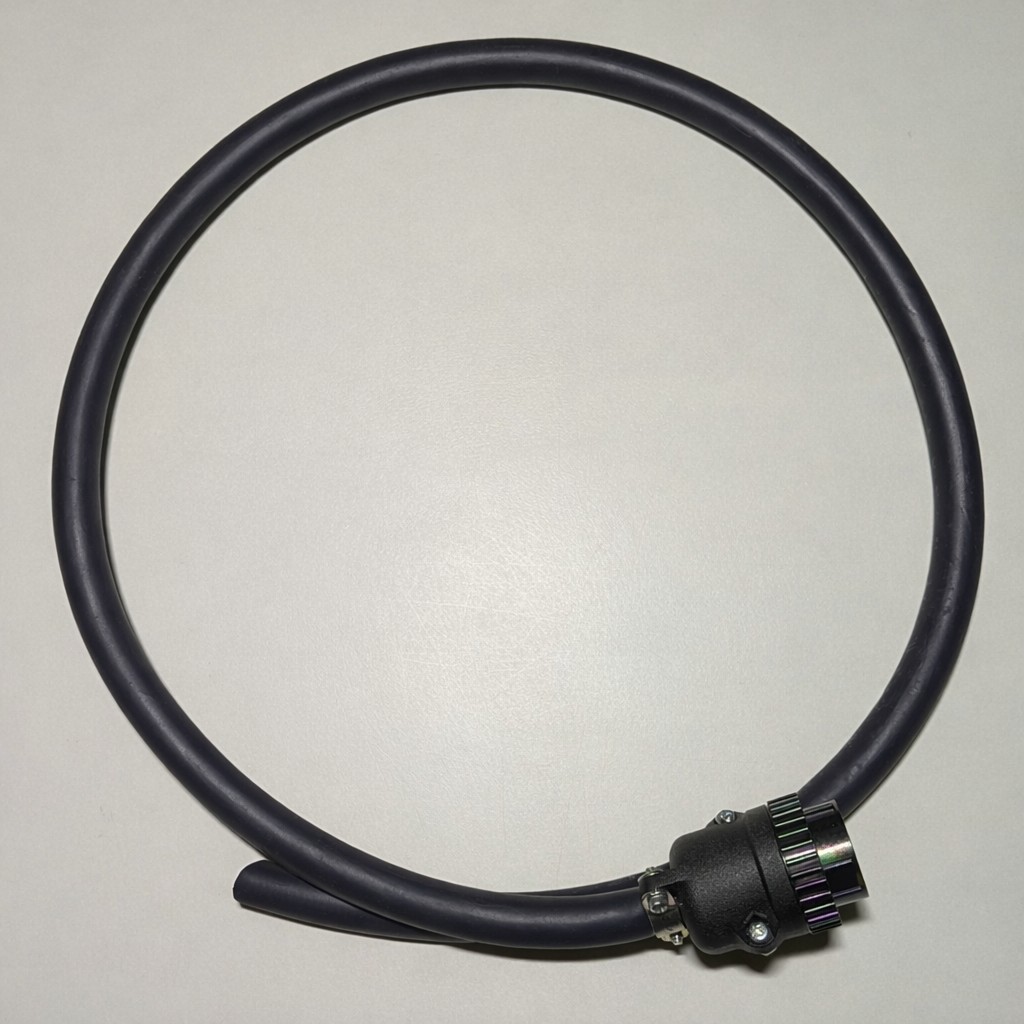

Fanuc 24 pin EE cable and connector.
High Flex for End Effectors.
EE Cable high flex
.
HIGH FLEX CABLE
STRAIGHT
SELECT LENGTH

HIGH FLEX CABLE
90° CONNECTOR
SELECT LENGTH


Fanuc 24 pin EE cable and connector.
High Flex with distribution box.
8 ports M12 A coded connections and LED lights.
Perfect for End Effectors. Standard sensor cables.
 8 inputs and 8 outputs are ready for quick hookups.
EE connector
.
SELECT LENGTH

.
Fanuc 24 pin EE connectors.
Straight and 90 Degree.
Connectors with no cable.
A63L-0001-0234/S2524MFANUC A63L-0001-0234#S2524M
.
Straight EE Connector

90 Degree EE Connector

.

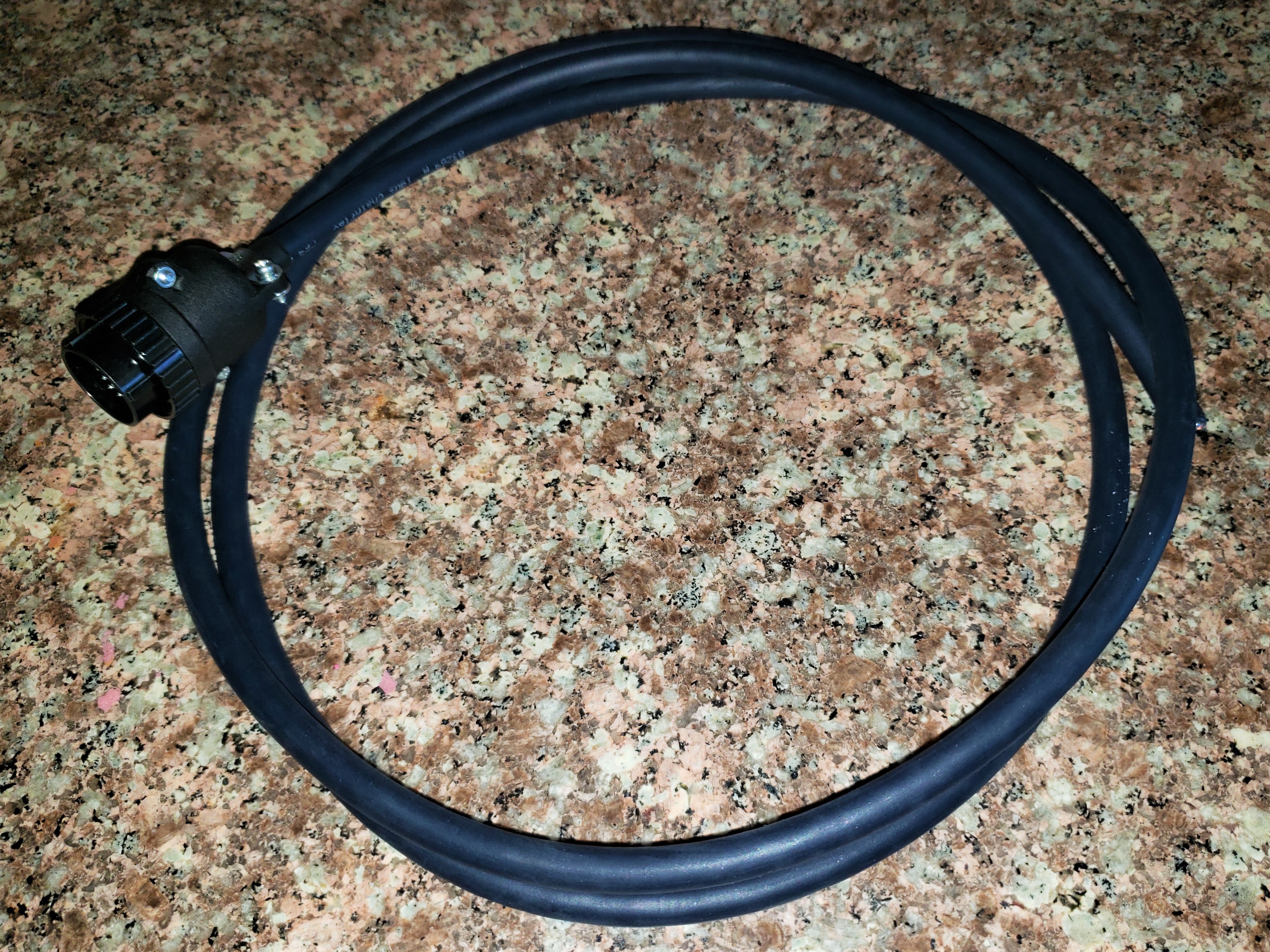

High Flex grade cable good for End of Arm.
This cable protects against wire break
and is very durable.
This cables comes with 10 conductors. Smaller diameter cable for easier dress out.
4 inputs 4 outputs with 24VDC.
EE Cable high flex
.
HIGH FLEX 10C
STRAIGHT
SELECT LENGTH

HIGH FLEX 10C
 90° CONNECTOR
 SELECT LENGTH


.
Customize your own EE cable.
Choose the number of conductors and the length.
Made with High Flex cable.
EE Cable high flex
.
Choose Conductors and Length
INPUTS
OUTPUTS
SPECIAL INPUTS
POWER

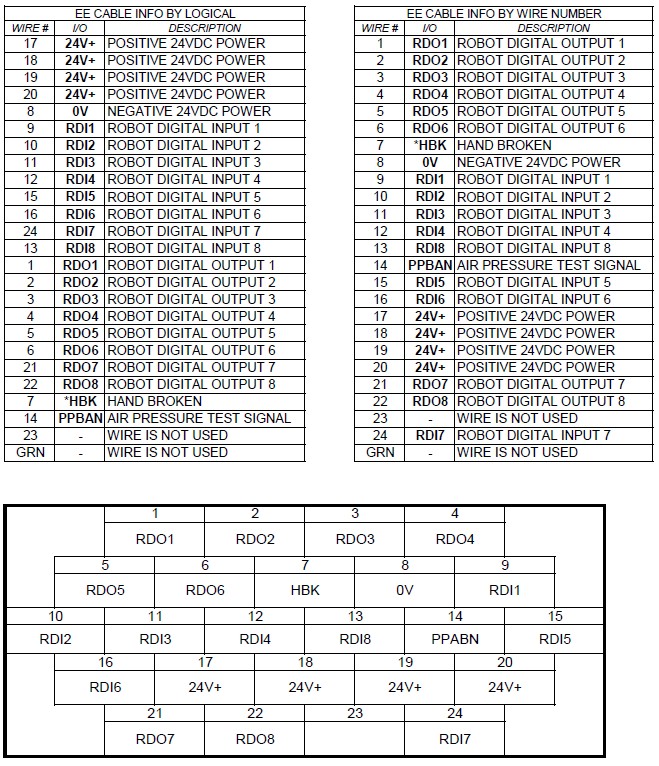

STANDARD PRINT

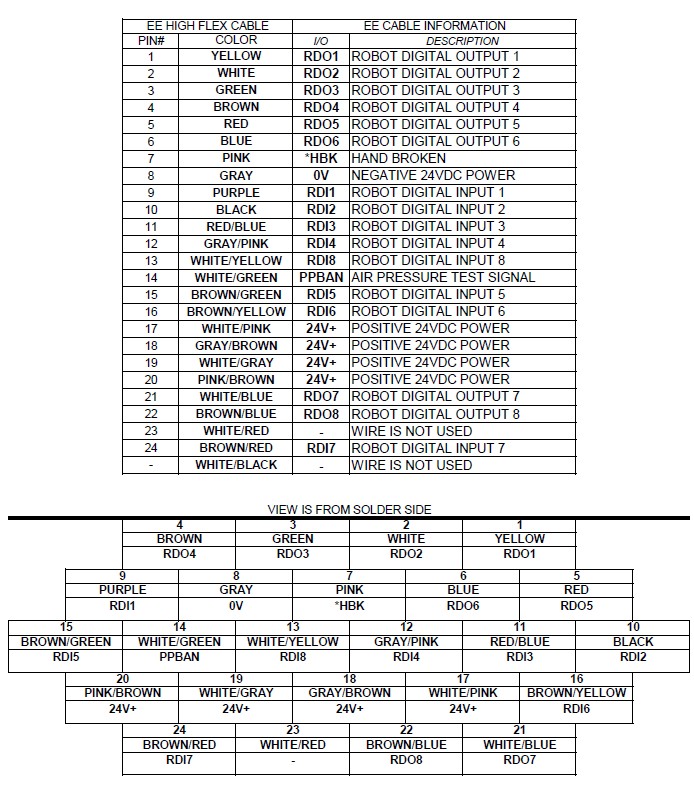

HIGH FLEX PRINT
